HPC Session 07 Collective MPI

Collective MPI

Non-blocking Collective Communication

  • Same idea as non-blocking peer-to-peer send/recv; now prepend call name with $I$

⇒ Overlap computation and communication by making global synchronisation calls to collective operations non-blocking (recall: immediately return)

⇒ Initiate using non-blocking call, finish with completion call (e.g., MPI Wait)

Start a broadcast of 100 ints from process root to every process in the group, perform some computation on independent data, and then complete the outstanding broadcast operation.

1
2
3
4
5
6

MPI_Comm comm;
int array1[100], array2[100], root=0;
MPI_Request req;
// ...
// compute something with array1 on root... MPI_Ibcast(array1, 100, MPI_INT, root, comm, &req); // compute something on array2...
MPI_Wait(&req, MPI_STATUS_IGNORE);

Almost never see used outside of libraries built on top of MPI…

Persistent Communication

In computational science we frequently use MPI in a particular pattern:

  • Initialize MPI and our problem domain
  • *Exchange subdomain information
  • Compute a distributed update ⇒ *Repeat *
  • Finalize MPI and our problem

MPI has facility for this use case, with persistent communication. The peer-to-peer version uses:

1
2
3
4
5
6

int MPI_Send_init(const void *buf, int count, MPI_Datatype datatype,
    int dest, int tag, MPI_Comm comm, MPI_Request *request)
int MPI_Recv_init(void *buf, int count, MPI_Datatype datatype,
        int source, int tag, MPI_Comm comm, MPI_Request *request)
int MPI_Start(MPI_Request *request)
int MPI_Request_free(MPI_Request *request)

Persistent Communication — P2P

Cornell, Implementing Persistent Communication: https://cvw.cac.cornell.edu/MPIP2P/percomm2

1
2
3
4
5
6
7
8
9
10
11
12
13

// Step 1) Initialize send/recv request objects
MPI_Recv_init(buf1, cnt, tp, src, tag, com, &recv_obj);
MPI_Send_init(buf2, cnt, tp, dst, tag, com, &send_obj);
for (i=1; i<BIGNUM; i++){
    // Step 2) Use start in place of recv and send
MPI_Start(&recv_obj);
// Do work on buf1, buf2 MPI_Start(&send_obj);
// Wait for send to complete MPI_Wait(&send_obj, status);
// Wait for receive to finish (no deadlock!) MPI_Wait(&recv_obj, status);
}
// Step 3) Clean up the requests
MPI_Request_free(&recv_obj);
MPI_Request_free(&send_obj);
  • Usage is similar to MPI_Send & MPI_Recv ⇒ Set up unique send/recv once, just repeatedly start them

MPI Communicator Manipulation

  • We could distinguish MPI_Sends & MPI_Recvs by tag

  • No such ability for collective operations — always uses all processes in COMM ⇒ What if we want a collective operation which only uses a subset of processes? ⇒ What if we want multiple collective operations which don’t interfere?

We must manipulate the communicator!

1
2
3
4
5
6

// duplicate a comm
int MPI_Comm_dup(MPI_Comm incomm, MPI_Comm *outcomm); // release a comm
int MPI_Comm_free(MPI_Comm *comm);
// split a comm
int MPI_Comm_split(MPI_Comm incomm, int colour, int key,
                   MPI_Comm *newcomm);

MPI_COMM_SELF is an example of a pre-defined intra-communicator: MPI_Comm_split(MPI_COMM_WORLD, rank, rank, MPI COMM SELF);.

Example – communicator manipulation

How would we use these in an example?

  • First we define incomm as MPI_COMM_WORLD
  • And define newcomm
  • then split incomm according to rank % 2 into newcomm
  • And finally free newcomm once we are done with it.
1
2
3
4
5
6
7

int rank;
MPI_Comm incomm = MPI_COMM_WORLD;
MPI_Comm newcomm;
MPI_Comm_rank(incomm, &rank)
MPI_Comm_split(incomm, rank % 2, rank, &newcomm);
// Do stuff with newcomm
MPI_Comm_free(&newcomm); // Release once we are done

Creating new communicators does not create new processes, it links existing ones! Communicators are cheap to manipulate and can simplify your communication strategy.

MPI_omm_split Diagram

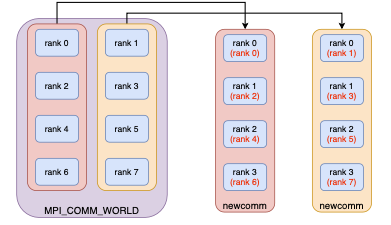

MPI_Comm_split(MPI_COMM_WORLD, rank % 2, rank, &newcomm)

image-20241202215220378

Virtual Process Topologies

  • The communication pattern of an MPI program is, in general, a graph ⇒ Processes $\Leftrightarrow$ nodes , Communication $\Leftrightarrow$ edges
  • Most applications use regular graph communications (rings, grids, tori, etc.) ⇒ Simplify set up of regular graph structures for convenience.

This can simplify finding the adjacencies for your processes according to the physical dimensions of your problem.

1
2
3
4
5
6
7
8

// ...
MPI_Dims_create(size, 2, dims);
MPI_Cart_create(MPI_COMM_WORLD, 2, dims, periods, reorder,
&new_communicator);
// shift tells us our left and right neighbours MPI_Cart_shift(new_communicator, 0, 1, &neighbours_ranks[LEFT],
&neighbours_ranks[RIGHT]);
// shift tells us our up and down neighbours MPI_Cart_shift(new_communicator, 1, 1, &neighbours_ranks[DOWN],
        &neighbours_ranks[UP]);

See HPC rookie: https://rookiehpc.github.io/mpi/docs/mpi_cart_shift/index.html

One-Sided Communication

  • This is a new (v3.1) feature, where instead of message-passing, we specify all communication parameters from a single process through remote memory access (RMA).

  • Message-passing communication achieves two effects: communication of data and synchronization; The RMA design separates these two functions. Then can manage A = B[index map] or permutation-type computations across processes.

  • RMA functions by each process specifying a “window” in its memory that is made accessible to accesses by a remote process.

1
2
3
4
5
6
7
8
9

while (!converged(A)){
    update(A);
    MPI_Win_fence(MPI_MODE_NOPRECEDE, win);
    for(i=0; i < toneighbors; i++){
            MPI_Put(&frombuf[i], 1, fromtype[i], toneighbor[i],
                    todisp[i], 1, totype[i], win);
}
    MPI_Win_fence((MPI_MODE_NOSTORE | MPI_MODE_NOSUCCEED), win);
}

Note: as a new feature, usage may not be reliably optimised!

MPI-IO

  • When using MPI, you want to write your simulation data to disk ⇒ Manually, for nprocs processes, this is nprocs files that you then need to coordinate and read to get everything back (e.g., for visualisation)

  • MPI-IO coordinates writing data to disk over MPI communication infrastructure to create a single file

  • The genuinely new element is amode (access mode): read-only, read-write, write-only, create, exclusive.
1
2
3
4
5
6
7
8
9
10
11

// open a file
int MPI_File_open(MPI_Comm comm, const char *filename,
        int amode, MPI_Info info, MPI_File *fh)
// read from a file
int MPI_File_read_at(MPI_File fh, MPI_Offset offset, void *buf,
        int count, MPI_Datatype datatype, MPI_Status *status)
// write to a file
int MPI_File_write_at(MPI_File fh, MPI_Offset offset, const void *buf,
        int count, MPI_Datatype datatype, MPI_Status *status)
// close a file
int MPI_File_close(MPI_File *fh)

Concept of building block

  • Content

  • Advanced MPI techniques

  • Expected Learning Outcomes

  • The student knows of MPI communicator manipulation

  • The student knows of persistent communication
  • The student knows of non-blocking collective communication
  • The student knows of virtual process topologies & neighborhoods
  • The student knows of one-sided communication
  • The student knows of the relative benefits of MPI-IO

MPI + X

  • If your problem benefits from distributed memory parallelism…
  • … then it probably also benefits from shared memory parallelism.

  • Thus the drive to use both techniques to optimally solve your problem.

  • This paradigm is especially relevant to GPU-accelerated computation — MPI not available on GPUs! ⇒ or FPGAs, other accelerators, heterogeneous systems generally…

  • MPI+CUDA is a common combination because you rarely have more than one compute-ready GPU per physical node (slightly more common now…)

  • “MPI+X” needs more work on the ‘+’ part ⇒ The important question is What to compute, where?
  • What is ‘X’? is comparatively less interesting

MPI + OpenMP

  • This is the paradigm most people think of for ‘MPI+X’, and the only one we’ll consider in this class.
  • The idea is simple: ⇒ use MPI to coordinate processes on different nodes ⇒ use OpenMP to parallelise the computation on each node, independently
1
2
3
4
5
6
7

#pragma omp parallel default(none) shared(??, ??, ??) private(??, ??)
{
np = omp_get_num_threads();
iam = omp_get_thread_num();
printf("thread %d of %d, process %d of %d on %s\n",
    iam, np, rank, numprocs, processor_name);
}
  • Which variables should be shared? Which should be private?
  • Given OMP NUM THREADS=8 and mpirun -n 4, how many lines does this output?
  • On a single node CPU with 8 cores, how many processes and threads should we use for compute-bound tasks?

MPI+CUDA & CUDA-aware MPI

  • With CUDA in particular, significant work already done to improve MPI+CUDA
  • With regular MPI only pointers to host memory can be passed to MPI. ⇒ You need to stage GPU buffers through host memory (expensive!!!)

Without CUDA-awareness:

1
2
3
4
5

//MPI rank 0
cudaMemcpy(s_buf_h,s_buf_d,size,cudaMemcpyDeviceToHost); // expensive MPI_Send(s_buf_h,size,MPI_CHAR,1,100,MPI_COMM_WORLD);
//MPI rank n-1
MPI_Recv(r_buf_h,size,MPI_CHAR,0,100,MPI_COMM_WORLD, &status);
cudaMemcpy(r_buf_d,r_buf_h,size,cudaMemcpyHostToDevice); // expensive

With CUDA-awareness:

1
2
3
4

//MPI rank 0
MPI_Send(s_buf_d,size,MPI_CHAR,1,100,MPI_COMM_WORLD);
//MPI rank n-1
MPI_Recv(r_buf_d,size,MPI_CHAR,0,100,MPI_COMM_WORLD, &status);

Concept of building block

  • Content
  • Brief look at ‘MPI + OpenMP’

  • Brief look at ‘MPI + CUDA’

  • Expected Learning Outcomes
  • The student knows of MPI + OpenMP coordination
  • The student knows of CUDA-aware MPI programs

  • The student knows of pitfalls of ‘MPI + X’ paradigm

  • Further reading:
  • Michael Wolfe, Compilers and More: MPI+X: https://www.hpcwire.com/2014/07/16/compilers-mpix/
  • Gropp et al., Is it time to retire the ping-pong test?: https://dl.acm.org/doi/10.1145/2966884.2966919

Review: OpenMP

  • Shared memory parallelism using the BSP programming model
  • Progressive parallelisation approach from serial code using pragmas
  • Primary parallel feature is the for loop
  • Primary difficulty is the management of data access
1
2
3
4
5

#include <omp.h>
// ...
#pragma omp parallel for default(shared) private(i) reduction(+:sum) for (i=0; i < N; i++){
}
a[i] = f(b[i]); // f is very expensive! sum += a[i];
  • Lots of other optimisation features: simd, collapse(n), device, etc.
  • Tasking is interesting, but unused because of intersection of scientific community users and task-level parallelism
  • I Out of luck if your problem doesn’t fit into the memory on one machine

Review: MPI

  • Distributed memory parallelism using the SPMD programming model
  • Best case scenario is the bulk compute pattern is preserved from serial code
  • Primary parallel feature is everything/nothing Everything is parallel, you write the communication
  • Primary difficulty is the coordination of messages to avoid deadlock
1
2
3
4

#include <mpi.h>
// ...
MPI_Send(&buf1, n, MPI_DOUBLE, );
MPI_Recv();
  • Huge number of communication patterns
  • But MPI itself does very little for parallel computation, basically serial on each process
  • Not quite feasible to do progressive parallelisation from serial code

Parallelism in other languages

Python:

1
2
3
4
5

import numpy as np
A = np.random.rand(500,500)
B = np.random.rand(500,500)
C = np.random.rand(500,500)
C = A + B # calls multithreaded C library for broadcasting numpy arrays

Julia:

1
2
3
4
5
6
7

A = rand(500,500)
B = rand(500,500)
C = rand(500,500)
\# C .= A .+ B does the same, single-threaded, by broadcasting
Threads.@threads for i in eachindex(A,B,C) #threaded for-loop like OpenMP
   C[i] = A[i] + B[i]
end

Beyond MPI & OpenMP

Disclaimer: You do not need C / Fortran & MPI / OpenMP in order to achieve high- performance computations.

C has MPI + OpenMP, etc.

  • Julia has MPI + Threads (like OpenMP), etc.
  • Python has MPI + numpy (like OpenMP template library), etc.
  • Rust has channels (like MPI) + threads (likeOpenMP), etc.
  • Go has channels (like MPI) + go routines (like OpenMP), etc.
  • Even Javascript has web workers (like OpenMPtasks)

⇒ …Andmostoftheseareinter-operable!

In all these languages, the usual tactics are:

  • Make your serial program as fast as possible first
  • Write as much of your code in terms of BLAS primitives as possible
    • BLAS Level 1: vector-vector operations
    • BLAS Level 2: matrix-vector operations
    • BLAS Level 3: matrix-matrix operations

Concept of building block

  • Content

    • High level review of OpenMP

    • High level review of MPI
    • Placing OpenMP & MPI in broader context of HPC
    • Other languages approaches to parallelism for HPC
  • Expected Learning Outcomes
    • The student knows of the broader context of parallelism beyond OpenMP & MPI
    • The student knows some of the alternatives used in other languages
  • Further Reading:
    • HPC is dying and MPI is killing it https://www.dursi.ca/post/hpc-is-dying-and-mpi-is-killing-it
    • *[…]FundamentalLawsRunOutofSteam https://semiengineering.com/chip-design-shifts-as-fundamental-laws-run-out-of-steam/
    • Cataloging the Visible Universe through Bayesian Inference at Petascale https://arxiv.org/abs/1801.10277
    • MPI+X: Opportunities and Limitations [. . . ]https://www.cmor-faculty.rice.edu/~mk51/presentations/SIAMPP2016_5.pdf
Study, Master
DU HPC
This post is licensed under CC BY 4.0 by the author.
