HPC Session 02 OpenMP

OpenMP

OpenMP is a …

• abbreviation for Open Multi Processing
• allows programmers to annotate their C/FORTRAN code with parallelism specs
• portability stems from compiler support
• standard defined by a consortium (www.openmp.org)
• driven by AMD, IBM, Intel, Cray, HP, Nvidia, . . .
• “old” thing currently facing its fifth (5.2) generation (1st: 1997, 2nd: 2000; 3rd: 2008; 4th: 2013, 5th: 2018)
• standard to program embarrassingly parallel accelerators – i.e., GPGPU We’ve come a long way from manual loop unrolls in OpenCL…
• Way to iteratively parallelise serial code by identifying opportunities for concurrency

A first example

const int size = ...
int a[size];
#pragma omp parallel for
for( int i=0; i<size; i++ ) {
  a[i] = i
}

• OpenMP for C is a preprocessor(pragma)-based extension (annotations, not API)
  • Implementation is up to the compiler (built in to recent GNU and Intel compilers; before additional precompiler required)
  • Implementations internally rely on libraries (such as pthreads)
  • Annotations that are not understood should be ignored (don’t break old code)
• Syntax conventions
  • OpenMP statements always start with #pragma omp
  • Before GCC 4, source-to-source compiler replaced only those lines
• OpenMP originally written for BSP/Fork-Join applications
• OpenMP usually abstracts from machine characteristics (number of cores, threads, . . . )

Compilation and execution:

• GCC: -fopenmp
• Intel: -openmp
• Some systems require #include <omp.h>
• Set threads: export OMP NUM THREADS=2

What happens — usage

const int size = ...
int a[size];
#pragma omp parallel for
for( int i=0; i<size; i++ ) {
  a[i] = i
}

$ gcc -fopenmp test.c
$ export OMP_NUM_THREADS=4
$ ./a.out

• Code runs serially until it hits the #pragma
• System splits up for loop into chunks (we do not yet know how many)
• Chunks then are deployed among the available (four) threads
• All threads wait until loop has terminated on all threads =>, i.e. it synchronises the threads ) bulk synchronous processing (bsp)
• Individual threads may execute different instructions from the loop concurrently (designed for MIMD machines)

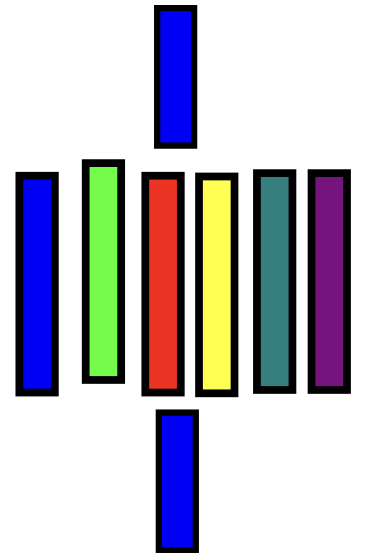

OpenMP execution model

#pragma omp parallel
{
  for( int i=0; i<size; i++ ) {
		a[i] = i;
  }
}

Implicit scooping:

#pragma omp parallel
for( int i=0; i<size; i++ ) {
  a[i] = i;
}

• Manager thread vs. worker threads
• Fork/join execution model with implicit synchronisation (barrier) at end of scope
• Nested parallel loops possible (though sometimes very expensive)
• Shared memory paradigm (everybody may access everything)

Some OMP functions

int numberOfThreads = omp_get_num_procs();
#pragma omp parallel for
for( int i=0; i<size; i++ ) {
  int thisLineCodeIsRunningOn = omp_get_thread_num();
}

• No explicit initialisation of OpenMP required in source code
• Abstracted from hardware threads—setting thread count is done by OS
• Error handling (to a greater extent) not specified by standard
• Functions almost never required (perhaps for debugging)

OpenMP function example

#include <stdio.h>
#include <omp.h>
int main(void)
{
  int mthread = omp_get_max_threads();
	int nthread = omp_get_num_threads();
	int thread;
	#pragma omp parallel private(thread) shared(mthread,nthread)
  {
    thread = omp_get_thread_num();
    printf("Hello, World! I am thread %d of %d of %d\n",
	}
	return 0;
}

• omp_get_max_threads() – maximum number of threads, in this case reads OMP NUM THREADS
• omp_get_max_threads()– current number of threads, in this case 1
• omp_get_max_threads()– current thread index, in this case between 1 & OMP NUM THREADS

OpenMP function example

#include <stdio.h>
#include <omp.h>
int main(void)
{
  int mthread = omp_get_max_threads();
  int nthread;
  int thread;
	#pragma omp parallel private(thread,nthread) shared(mthread)
  {
    thread = omp_get_thread_num();
    nthread = omp_get_num_threads();
    printf("Hello, World! I am thread %d of %d of %d\n",
	}
	return 0;
}

• What is the output of running this example with OMP_NUM_THREADS=2?

Parallel loops in action

#pragma omp parallel // parallel, but doesn't split the work!
{
  for( int i=0; i<size; i++ ) {
    a[i] = a[i]*2;
	}
}
#pragma omp parallel for // splits work to be done in parallel
{
  for( int i=0; i<size; i++ ) {
    a[i] = a[i]*2;
	}
}

Observations:

• Global loop count is either size or threads·size
• We may run into race conditions
• These result from dependencies (read-write, write-read, write-write) on a[i]

Parallel loops and BSP

#pragma omp parallel
{
	#pragma omp for
	for( int i=0; i<size; i++ ) {
  a[i] = a[i]*2;
	}
}

• omp parallel triggers fork technically, i.e. spawns the threads
• for decomposes the iteration range (logical fork part)
• omp parallel for is a shortcut
• BSP’s join/barrier is done implicitly at end of the parallel section

Requirements for parallel loops

#pragma omp parallel for
{
  for( int i=0; i<size; i++ ) {
    a[i] = a[i]*2;
  }
}

• Loop has to follow plain initialisation-condition-increment pattern:
  • Only integer counters
  • Only plain comparisons
  • Only increment and decrement (no multiplication or any arithmetics)
• Loop has be countable (otherwise splitting is doomed to fail).
• Loop has to follow single-entry/single-exit pattern.

Data consistency in OpenMP’s BSP model

#pragma omp parallel
{
	#pragma omp for
	for( int i=0; i<size; i++ ) {
  a[i] = a[i]*2;
	}
}

• No assumptions which statements run technically concurrent
• Shared memory without any consistency model
• No inter-thread communication (so far)

=> Data consistency is developer’s responsibility

Remaining agenda

Starting point:

• Data analysis allows us to identify candidates for data parallelism/BSP
• Concurrency analysis plus speedup laws determine potential real-world speedup
• OpenMP allows us to annotate serial code with BSP logic

Open questions:

• How is work technically split?
• How is work assigned to compute cores?
• What speedup can be expected in practice?

Scheduling: Assign work (loop fragments) to threads.

Pinning: Assign thread to core.

Technical remarks

On threads:

• A thread is a logically independent application part, i.e. it has its own call stack (local variables, local function history, . . . )
• All threads share one common heap (pointers are replicated but not the area they are pointing two)
• OpenMP literally starts new threads when we hit parallel for => over head
• OpenMP hides the scheduling from user code

On cores:

• Unix cores can host more than one thread though more than two (hyperthreading) becomes inefficient
• Unix OS may reassign threads from one core to the other ) => overhead
• Unix OS can restrict cores-to-thread mapping (task affinity)
• Unix OS can be forced to keep cores-to-thread mapping (pinning)

Grain size

Grain size: Minimal size of piece of work(loop range, e.g.).

• Concurrency is a theoretical metric, i.e. machine concurrency might/should be smaller
• Multithreading environment thus wrap up multiple parallel tasks into one job
• Grain size specifies how many tasks may be fused

Technical mapping of tasks

• Each thread has a queue of tasks (jobs to do)
• Each job has at least grain size
• Each thread processes tasks of its queues (dequeue)
• When all task queues are empty, BSP joins

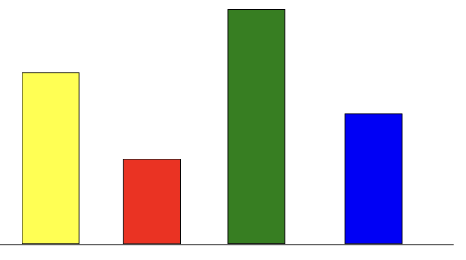

Static scheduling

Definition:

1. Cut problem into pieces (constrained by prescribed grain size)
2. Distribute work chunks among queues
3. Disable any work stealing

In OpenMP:

• Default behaviour of parallel for
• Trivial grain size of 1 if not specified differently
• Problem is divided into OMP NUM THREADS chunks => at most one task per queue

#pragma omp parallel for schedule(static,14)

Properties:

• Overhead
• Balancing
• Inflexibility w.r.t. inhomogeneous computations

Work stealing

Work stealing: When one thread runs out of work (work queue become empty), it tries to grab (steal) work packages from other threads.

Dynamic scheduling

Definition:

1. Cut problem into pieces of prescribed grain size
2. Distribute all work chunks among queues
3. Enable work stealing

In OpenMP:

• To be explicitly enabled in parallel for
• Trivial grain size of 1 if not specified differently
• Set of chunks is divided among OMP NUM THREADS queues first

#pragma omp parallel for schedule(dynamic)
...
#pragma omp parallel for schedule(dynamic,14)
...

Properties:

• Overhead
• Balancing
• Flexibility w.r.t. inhomogeneous computations

Guided scheduling

Definition:

1. Cut problem into chunks of size N/p constrained by grain size and with *p* =OMP NUM THREADS
2. Cut remaining tasks into pieces of (N/(2p)) constrained by grain size
3. Continue cut process iteratively
4. Distribute all work chunks among queues; biggest jobs first
5. Enable work stealing

In OpenMP:

• To be explicitly enabled in parallel for
• Trivial grain size of 1 if not specified differently
• Set of chunks is divided among OMP NUM THREADS queues first

Properties:

• Overhead
• Balancing
• Requires domain knowledge

Concept of building block: Loop scheduling

• Content
  • Introduce terminology
  • Discuss work stealing
  • Study OpenMP’s scheduling mechanisms
  • Study OpenMP’s two variants of dynamic scheduling
  • Conditional parallelisation
• Expected Learning Outcomes
  • The student knows technical terms tied to scheduling
  • The student can explain how work stealing conceptually works
  • The student can identify problems arising from poor scheduling/too small work packages
  • The student can use proper scheduling in OpenMP applications
